Web Shell Evolution and Discovery in IIS Modules

Posted by Marbenz Antonio on December 15, 2022

Web exploitation and web shells are common ways that attackers gain access to corporate networks. Web servers provide an external access point into the network, and are often the first point of entry for attackers. It is important for all networks to monitor for signs of exploitation and web shells, and to take steps to prevent them. While some techniques for detecting these threats are specific to IIS modules, many can be applied more broadly to protect against web shells in general.

History of malicious IIS modules

The concept of malicious IIS modules has been around since at least 2013. Historical analysis of malware has shown that crimeware groups have used IIS modules to intercept client logins and payment information by using the BeginRequest triggers to read user-provided parameters before the web server processes them.

One of the earliest examples of sophisticated IIS modules was discovered in late 2021. The vendor’s ICEAPPLE report describes an IIS module that was used by an attacker to load additional .NET modules, which in turn allowed the attacker to load additional capabilities. This allowed the attacker to minimize the number of malicious indicators in the base IIS module, and only load additional capabilities as needed.

Malicious IIS modules techniques

Event handlers

A key part of IIS module functionality is the ability to handle events. Event triggers are used to call code when specific actions occur. IIS modules have access to 27 default event triggers, including:

• Begin Request: When a request is received by the web server.
• End Request: When a response is about to be sent to the client.
• Error: When an error happens.
• Log Request: When a request is about to be logged.

Event handlers, which are called when their associated event triggers are fired, can be used by attackers to set up a proxy on the IIS server. By setting up event handlers on the BeginRequest, EndRequest, and Error event triggers, an attacker can intercept all requests before the web service can process them and before the response is sent to the client. This allows the attacker to control the communication between the client and the server, and potentially steal sensitive information.

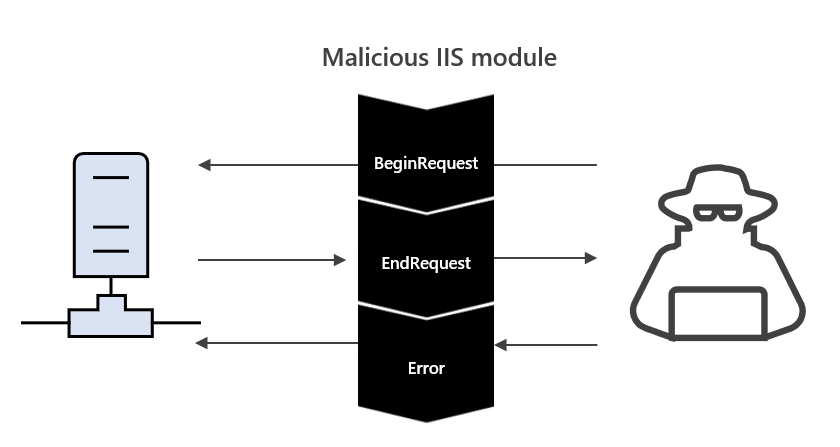

Figure 1. Diagram showing how the malicious IIS module sits between the web server and the client

Event handlers are given full access to read and write requests, which allows malicious IIS modules to hide web shell communications within any part of the web request. This can include hiding web shell communications in the parameters, body, headers, or HTTP methods of the request. This makes it difficult for defenders to detect the presence of web shells since they can be hidden in a wide range of different parts of the request. Additionally, because web shell communications can be hidden on pages that do or do not exist, it can be challenging to identify which pages are being used for malicious purposes.

The ability of malicious IIS modules to hide web shell communications in various parts of web requests makes them difficult to detect using standard IIS logs. Traditional web shell detection strategies, such as looking for high-frequency page requests or specific URI patterns, are not effective against malicious IIS modules. Instead, new detection techniques and the use of advanced IIS logging are required to detect these threats.

Request and response tampering

Another challenge with malicious IIS modules is that they can manipulate any part of the request and response. This can include removing web shell commands from parameters or headers and preventing web shell commands from being logged.

IIS modules can also intercept responses before they are sent to the client, which provides an opportunity for attackers to serve malicious payloads in the response from the website. This can potentially infect viewers of the website with malware.

Process creation

‘W3wp.exe’, also known as IIS worker processes, is used by web applications that run within IIS. The creation of new processes is a common indication of a web shell on IIS servers. Monitoring for the creation of common shell tools (such as cmd, PowerShell, rundll32, or mshta) with the parent process w3wp.exe can help to detect low-sophistication IIS modules.

Monitoring for the creation of common shell tools with the w3wp.exe process should not be considered a strong detection method for IIS modules. Because IIS modules have full integration with C# and the .NET framework, a wide range of functionality can be integrated to execute directly within the IIS process without the need to create child processes.

.NET assembly loading

A common tactic used by attackers is to load .NET modules directly into memory using the reflective loading of assemblies. This allows common tools, such as SharpHound or the Potato PrivEsc family, to be loaded without being written to disk. This is seen as a stealthier alternative to process creation because the tools are loaded within the context of the w3wp.exe process, rather than as a separate child process.

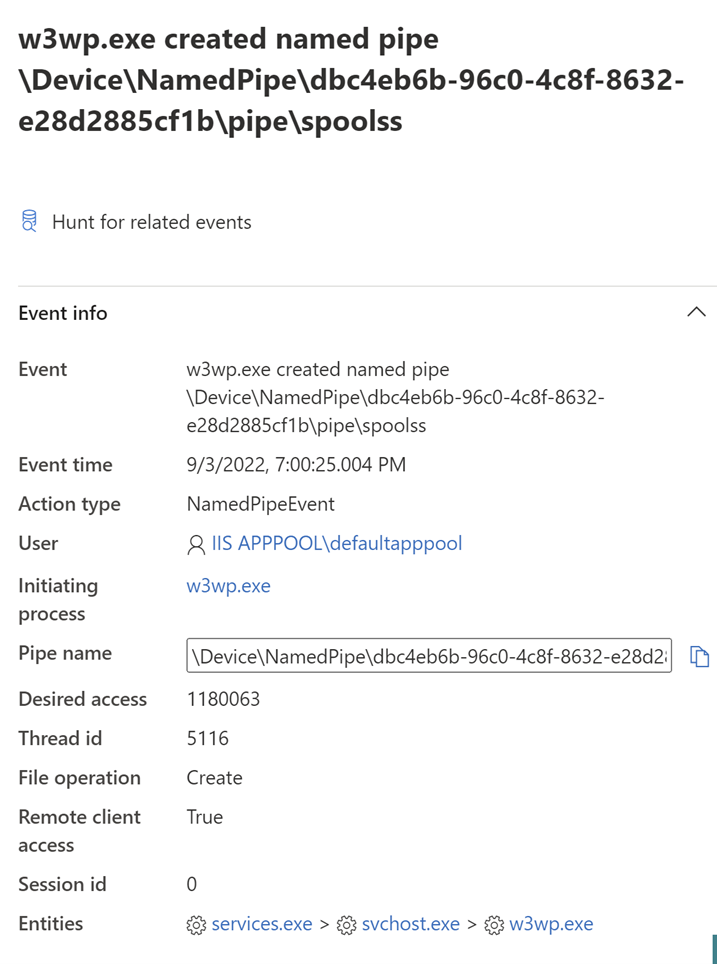

Figure 2. SweetPotato named pipes being created from within w3wp.exe

As mentioned in a previous vendor paper, assemblies can be provided arbitrarily to deliver additional functionality to IIS modules. This can be done by providing the assembly through the web request, or by downloading it from an attacker-controlled command and control (C2) server. The figure below illustrates this process:

1. SharpHound is downloaded from an external C2 and loaded through the Reflection Assembly Load method.
2. Two methods are invoked within the binary and the output directory is set to ProgramData.

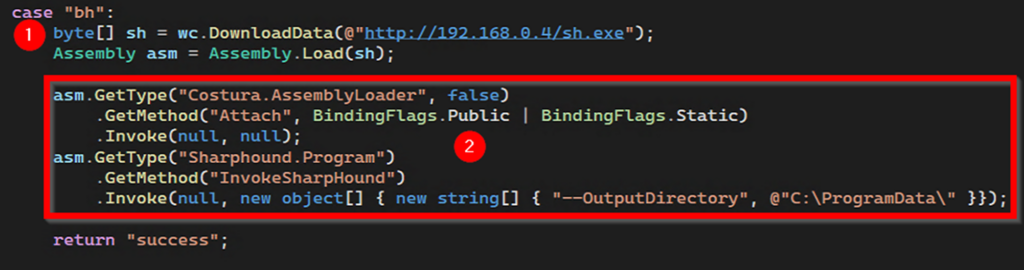

Figure 3. Example of an IIS module remotely downloading SharpHound and reflectively invoking it

Because IIS modules have access to .NET, attackers can use it to add additional layers of evasion to prevent the detection of their IIS modules. This can include techniques such as encoding or encryption. The figure below illustrates this process:

1. A base64 encoded blob and the size of the decoded assembly.
2. A new memory allocation is made, where the assembly is decoded and deflated into the new allocation.
3. The assembly is loaded and invoked, executing the command whoami.

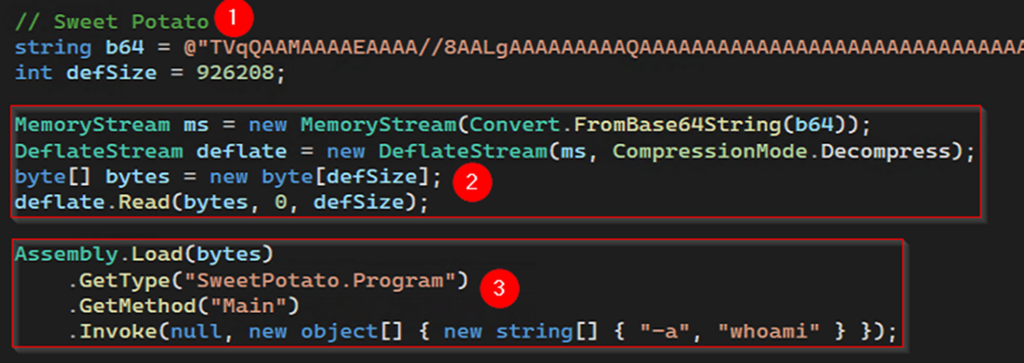

Figure 4. Example of SweetPotato being reflectively loaded and invoked

Logging and monitoring

Advanced IIS modules Logs

IIS logs are a good starting point for hunting for web shells, but it is recommended to use advanced IIS logging because IIS modules can remove malicious traffic from the standard IIS logs. The IIS Service can provide additional advanced logging, such as the Microsoft IIS Configuration Operational log, which can be enabled through the event log tool using the following commands:

• Lists additional logs available for IIS: `wevtutil el | findstr -i IIS`
• Configuration for the selected log: `wevtutil gl Microsoft-IIS-Configuration/Operational`
• Enable the selected log: `wevtutil sl /e:true Microsoft-IIS-Configuration/Operational`

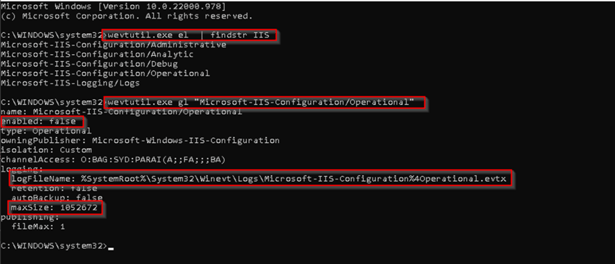

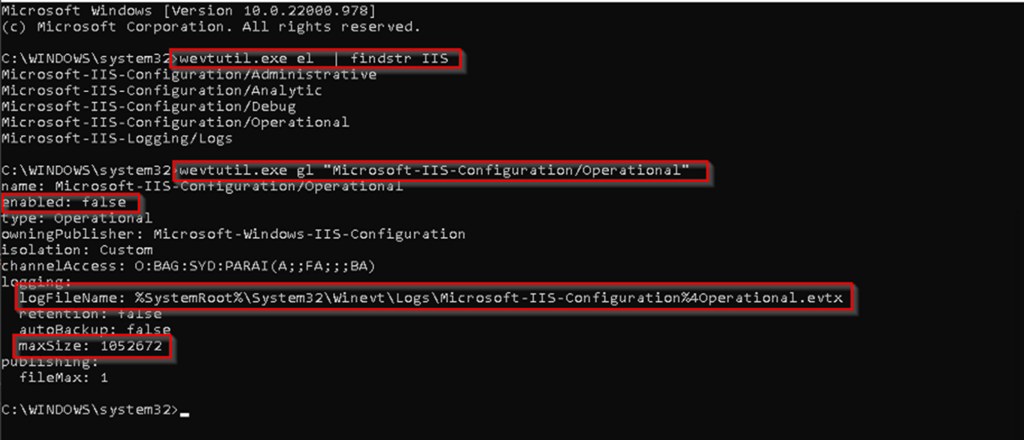

Figure 5. Example showing wevtutil querying the IIS Configuration Operational event log

The log that will be discussed in this blog is the Microsoft IIS Configuration Operational log. When enabled, the default path for this log is `C:\Windows\System32\winevt\Logs\Microsoft-IIS-Configuration%4Operational.evtx’ (as shown in the figure above).

The Microsoft IIS Configuration Operational log captures information about the addition and removal of IIS modules (Event ID 29). IIS modules are not commonly added to production IIS servers, so it is recommended to enable alerts for this event ID within your SIEM or security products.

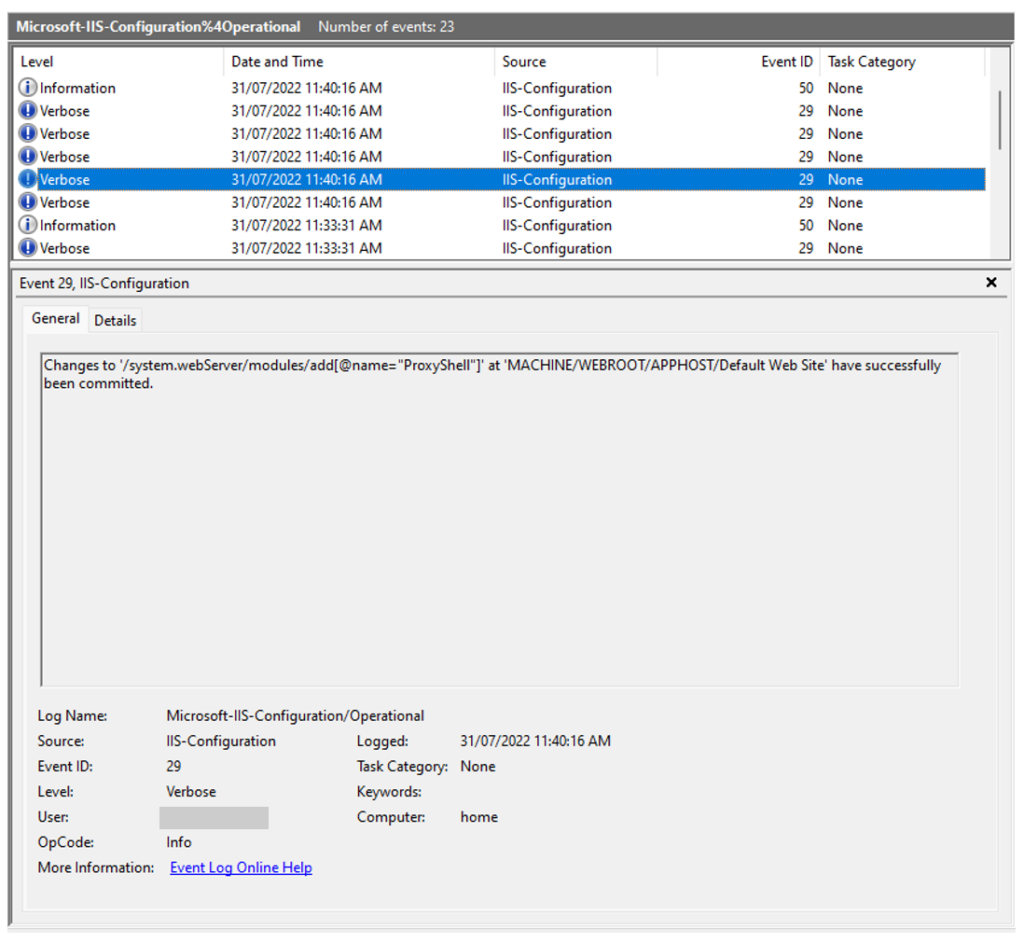

Figure 6. Event ID 29 shows the IIS module ‘ProxyShell’ being added to the default website

Note: This IIS module has no correlation with the Exchange Vulnerability ProxyShell.

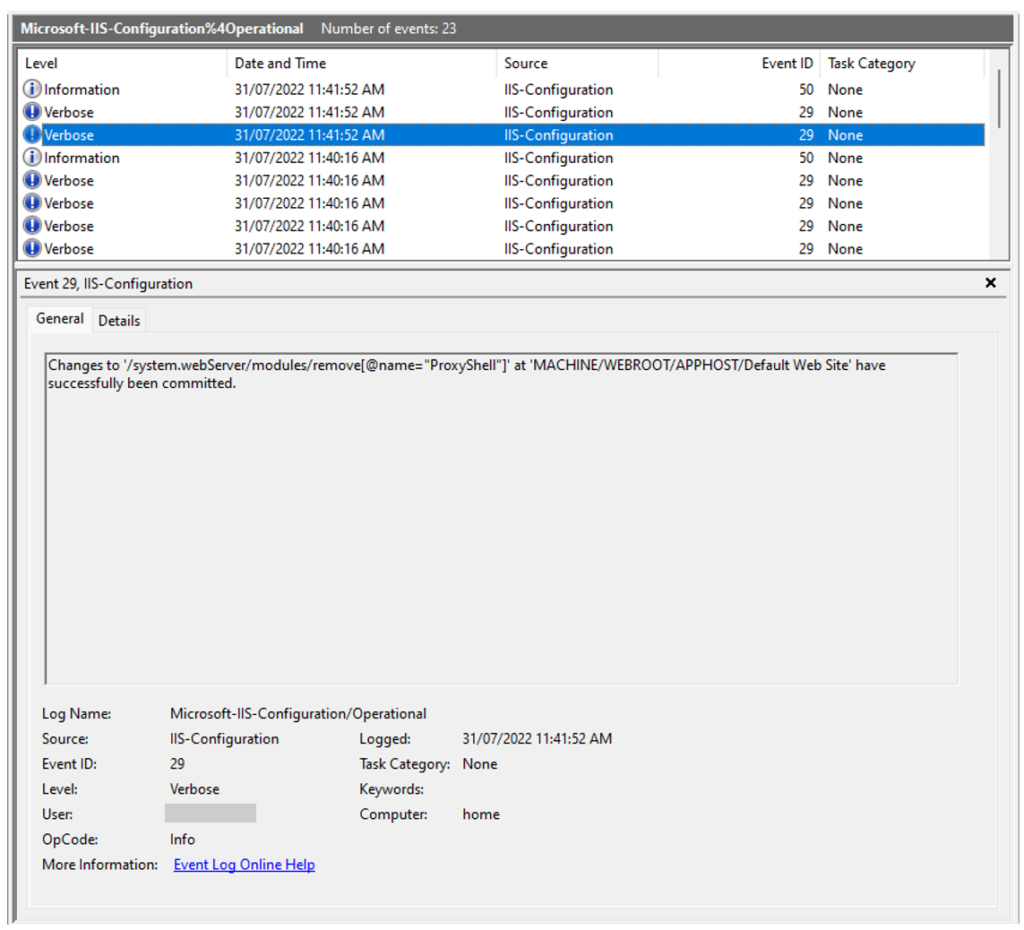

Figure 7. Event ID 29 showing the IIS module ‘ProxyShell’ being removed from the default website

IIS modules listing

IIS modules can be installed at the global level or at the site level. In order to detect malicious IIS modules, it is important to check both levels for unauthorized modules. Regular monitoring of these locations, and comparison against a known-good list of modules, can help to detect and identify malicious IIS modules. The Appcmd tool (located at %windir%\system32\inetsrv\appcmd.exe), which is a command-line tool for managing IIS servers, can be used for this purpose. The command appcmd list modules will list global IIS modules on your server, while the command appcmd list modules /app.name:<appName>/ will let you search for specific websites. Using these commands can help you to identify unauthorized IIS modules, and take steps to remove them.

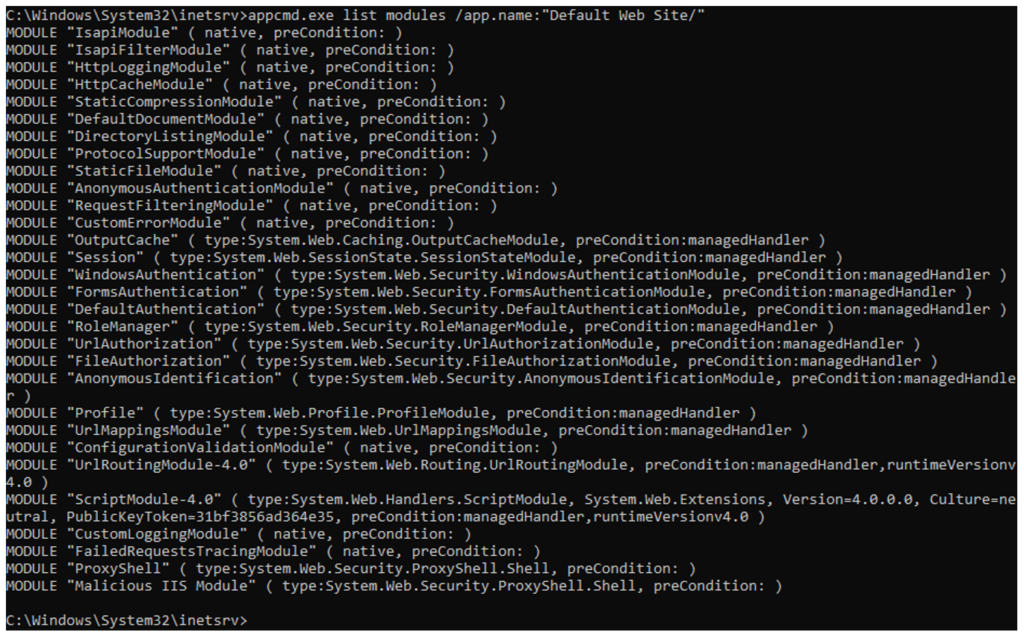

Figure 8. appcmd lists the modules for Default Web Site and shows two malicious modules: “ProxyShell” and “Malicious IIS Module”

Modules listed through Appcmd will be ordered based on the order in which they were installed. In the figure below, the two malicious IIS modules, ProxyShell and Malicious IIS Module are the two most recent IIS modules installed, and therefore appear at the end of the list. The type parameter also shows the class that is called when the module is loaded.

Web.config

The web.config file, which contains the settings for a website, can include information about the modules that the website loads. This means that monitoring the web.config file can be useful for detecting malicious IIS modules. When monitoring web.config files, it is important to focus on tracking modifications to the file. This can be done using various tools and sources, such as the Microsoft IIS Configuration Operational event log, which produces Event ID 50 when a modification is made to a website. Because the content of the modification is not captured in the event log, it is recommended to keep a backup of the web.config file for easy comparison with the modified version.

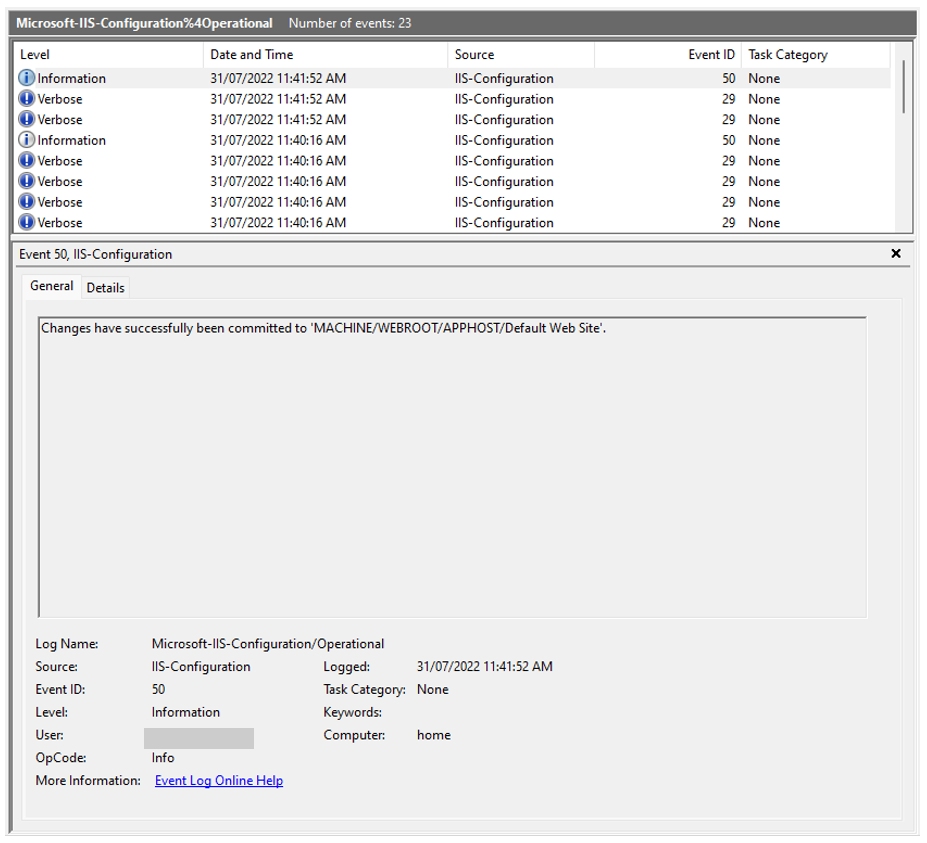

Figure 9. Event ID 50 showing that a modification has been made to a default website

Many endpoint detection and response (EDR) systems capture file modification events as well. Enabling an alert for the modification of web.config, especially from the w3wp.exe process, can help to detect unauthorized changes to the config file.

Hunting for malicious IIS modules

IIS modules loading

While IIS modules are typically loaded as DLLs, not all tools can detect .NET modules that are loaded into w3wp.exe. One tool that does show IIS modules loaded into w3wp.exe is Process Hacker, which, if used with administrative privileges, will display them under the Modules tab.

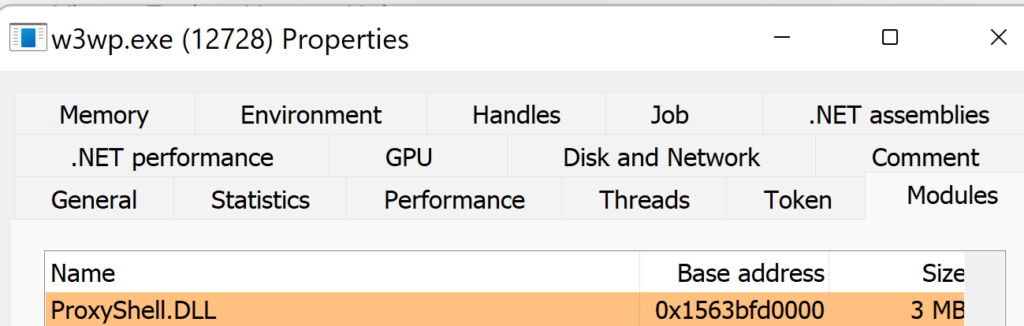

Figure 10. Malicious ProxyShell IIS module loaded within the w3wp.exe process

In Microsoft Defender for Endpoint, an IIS module that is loaded into w3wp.exe will appear twice: first when it is loaded from the bin directory where it resides, and then immediately afterward from the temporary ASP.NET directory.

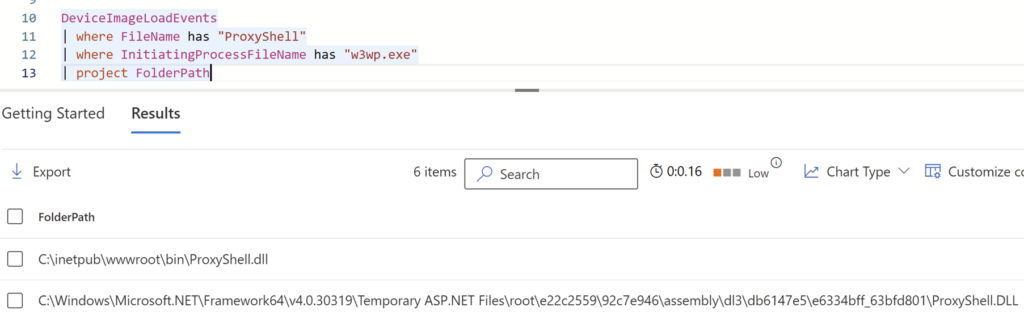

Figure 11. Malicious IIS module ProxyShell being listed in Defender for Endpoint

By default, IIS modules are loaded when the w3wp.exe process is created. If an IIS module is loaded while the w3wp.exe process is already executing, and at a different time than the rest of the modules, it can be an indicator of malicious IIS module loading. Monitoring for abnormal module loads can help to detect malicious IIS modules. A query like the one below, which groups together modules loaded into w3wp.exe at the same second, can be useful for this purpose:

DeviceImageLoadEvents
| where InitiatingProcessFileName has "w3wp.exe"
| summarize loaded_modules=make_set(FileName) by format_datetime(Timestamp, 'yy-MM-dd HH:mm:ss')
| project Timestamp, loaded_modules, count=array_length(loaded_modules)

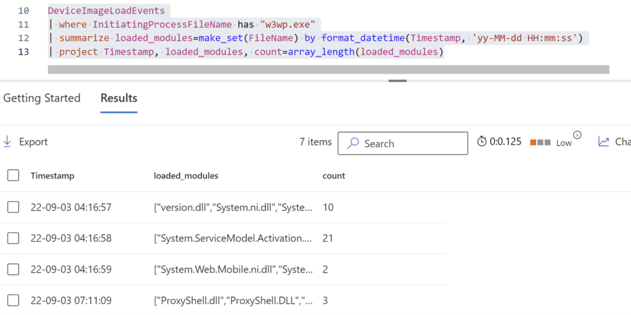

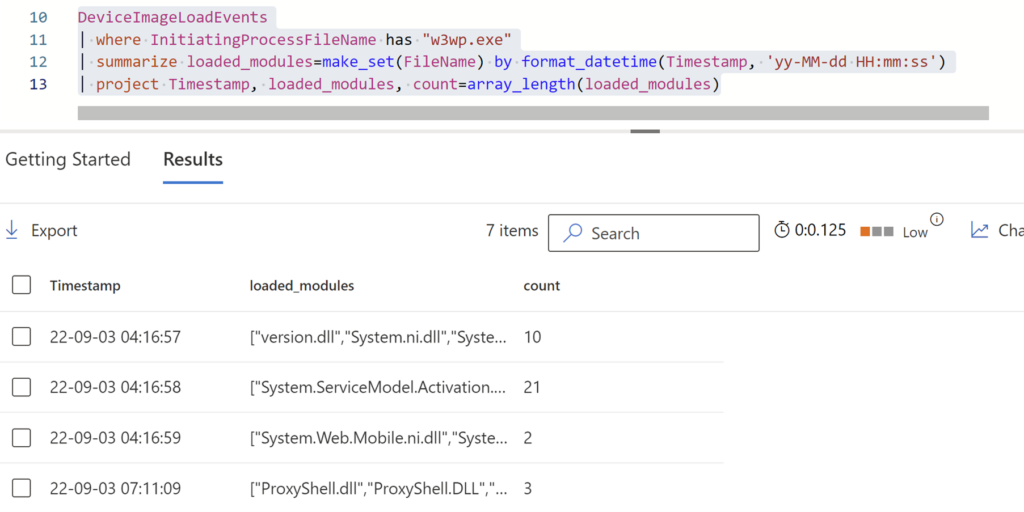

Figure 12. Anomalous module loading based on timeframe of other IIS modules

Assembly loading

Although IIS modules have the ability to load .NET modules arbitrarily and reflectively within the context of w3wp.exe, the AppDomains are still registered within the hosting process. By using a tool like Process Hacker to list the AppDomains loaded within an assembly, you can identify the loaded IIS module and any .NET modules that have been loaded.

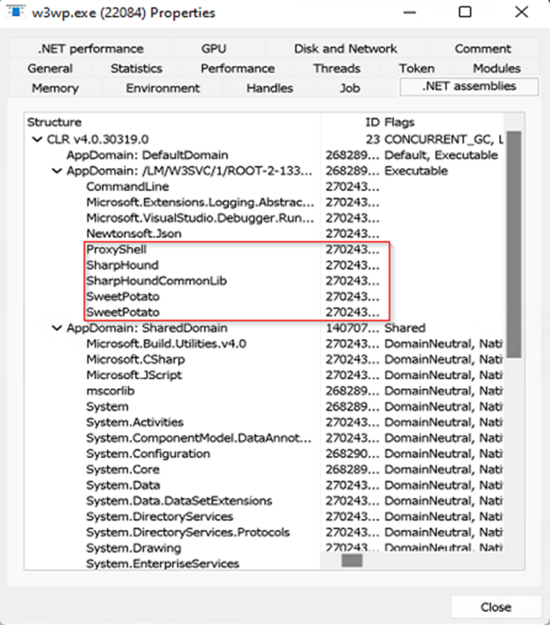

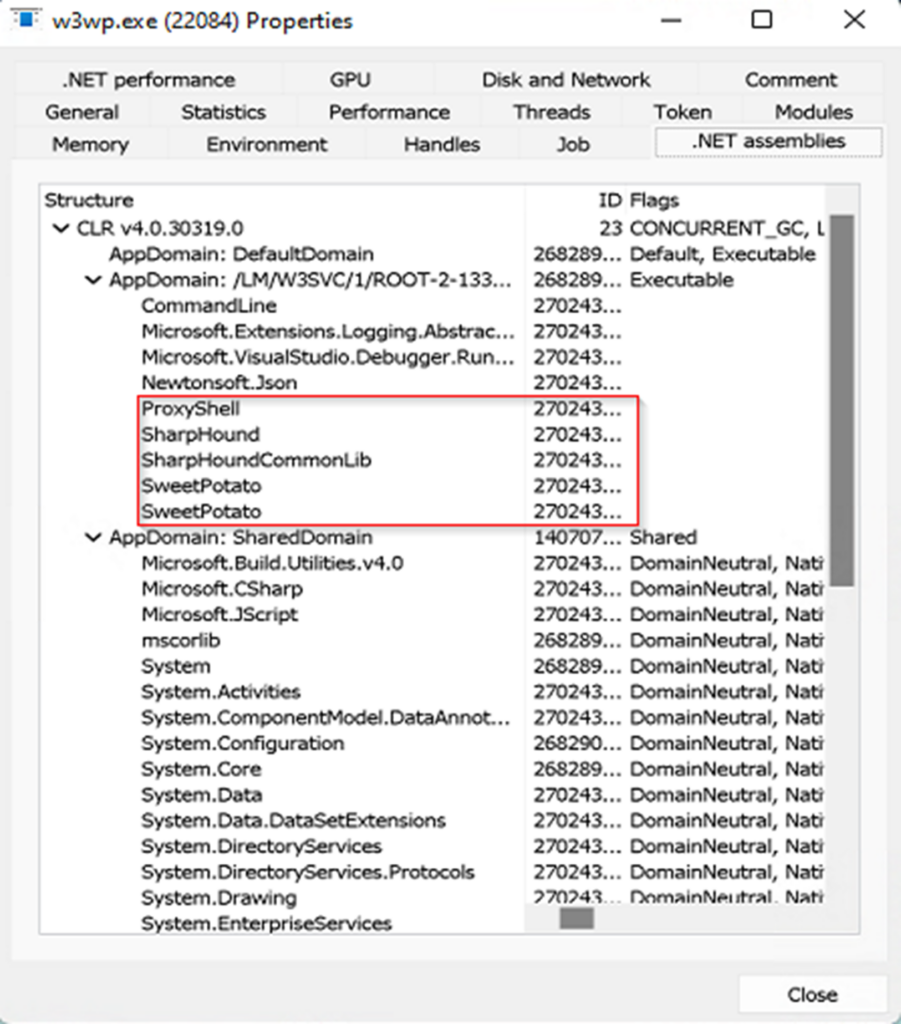

Figure 13. Malicious ProxyShell IIS module, SharpHound and SweetPotato App Domains

In the figure above, the malicious IIS module ProxyShell can be seen alongside the loaded assemblies SharpHound and SweetPotato. Another thing to note is that reflectively loaded modules usually do not have the Flags property. In the figure, all the assemblies without Flags are either loaded through the malicious IIS module or through Visual Studio debugging.

The ETW provider Microsoft-Windows-DotNETRuntimeRundown provides a snapshot in time of the loaded .NET modules within active processes. Two events that can help to detect malicious assemblies loaded within IIS are:

1. Event ID 151 lists loaded AppDomains.
2. Event ID 155 enumerates assemblies loaded at the time of the rundown.

The ModuleILPath field in the Microsoft-Windows-DotNETRuntimeRundown events shows the path of the loaded assembly. However, if an assembly is loaded reflectively, rather than from a file, the ModuleILPath field will just show the name of the assembly. The figure below shows how SharpHound and SweetPotato, both with reflectively loaded assemblies, do not have paths, while other events do:

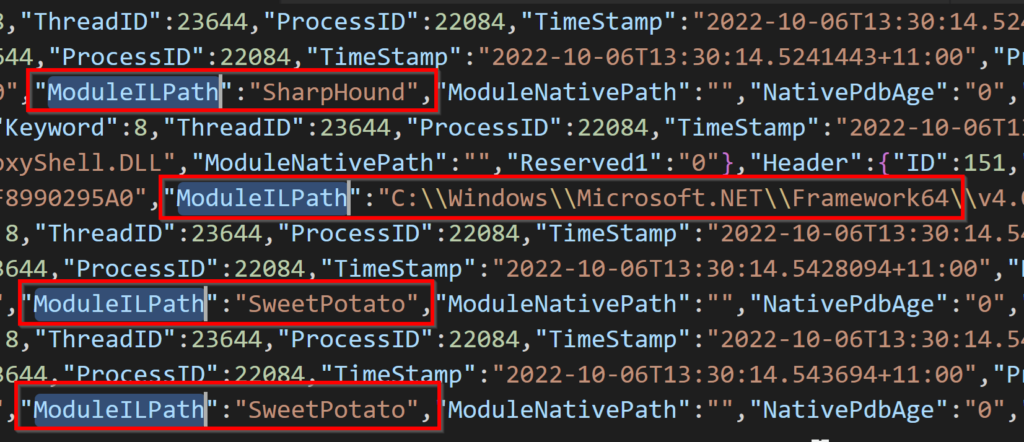

Figure 14. Example of reflectively loaded assemblies not having a file path within the ModuleILPath field

The Assembly Flags field in the Microsoft-Windows-DotNETRuntimeRundown events may also be 0, similar to how the Flags field appears empty for the assemblies in Figure 13 when using Process Hacker.

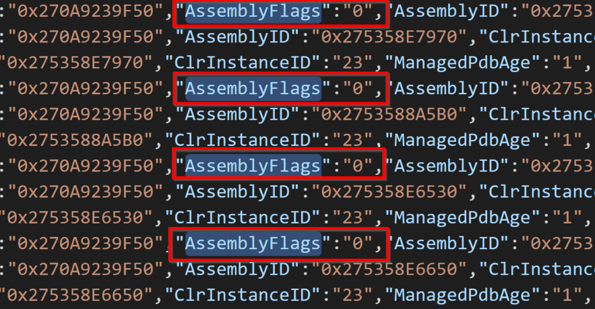

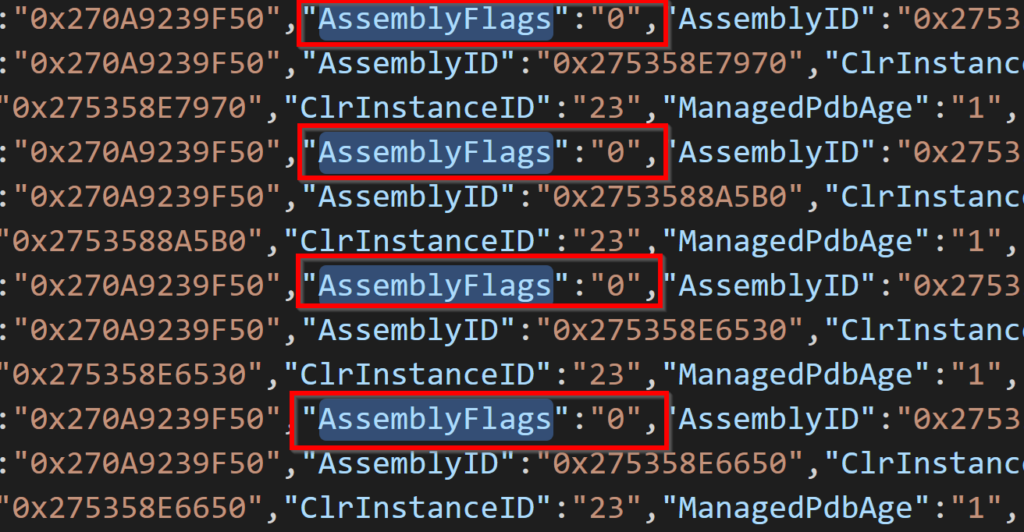

Figure 15. Example of empty assembly flags for .NET rundown

IIS module installation

Processes that contain appcmd or gacutil within the command line and have the parent process w3wp.exe should be investigated for potential installation of malicious IIS modules. The following Defender for Endpoint queries can help to detect such installations:

DeviceProcessEvents
| where ProcessCommandLine has "appcmd.exe add module"
| where InitiatingProcessParentFileName == "w3wp.exe"

DeviceProcessEvents
|where ProcessCommandLine has "\\gacutil.exe /I"
| where InitiatingProcessParentFileName == "w3wp.exe"

Process creation

It is important to monitor process creation events with the parent process w3wp.exe for abnormal child processes. For IIS servers that require child processes of w3wp.exe, ignore lists should be created for these child processes to prevent false flags.

DeviceProcessEvents
| where Timestamp > ago(7d)
| where InitiatingProcessFileName in~ ('w3wp.exe', 'httpd.exe')
| where FileName in~ ('cmd.exe', 'powershell.exe', 'cscript.exe', 'wscript.exe', 'net.exe', 'net1.exe', 'ping.exe', 'whoami.exe')
| summarize instances = count() by ProcessCommandLine, FolderPath, DeviceName, DeviceId
| order by instances asc

Conclusion

To protect against malicious IIS modules, it is recommended to enable additional logging in your IIS environment, monitor web.config and IIS modules for suspicious activity, and regularly hunt for abnormalities in w3wp.exe behavior. This can be done using tools such as Microsoft Defender for Endpoint or a preferred EDR solution. It is important to look for irregularities in behavior, as IIS modules can execute malicious code in various ways. Detecting and responding to these threats should be a priority for all organizations, and following these recommendations can assist in this effort.

---
